Using lakeFS with the Glue Catalog

Overview

The integration between Glue and lakeFS is based on Data Catalog Exports.

This guide describes how to use lakeFS with the Glue Data Catalog. You'll be able to query your lakeFS data by specifying the repository, branch and commit in your SQL query. Currently, only read operations are supported on the tables. You will set up the automation required to work with lakeFS on top of the Glue Data Catalog, including:

1. Create a table descriptor under _lakefs_tables/<your-table>.yaml. This will represent your table schema.
2. Write an exporter script that will:
3. Mirror your branch's state into Hive Symlink files readable by Athena.
4. Export the table descriptors from your branch to the Glue Catalog.
5. Set up lakeFS hooks to trigger the above script when specific events occur.

Example: Using Athena to query lakeFS data

Prerequisites

Before starting, make sure you have: 1. An active lakeFS installation with S3 as the backing storage, and a repository in this installation. 2. A database in Glue Data Catalog (lakeFS does not create one). 3. AWS Credentials with permission to manage Glue, Athena Query and S3 access.

Add table descriptor

Let's define a table, and commit it to lakeFS. Save the YAML below as animals.yaml and upload it to lakeFS.

bash lakectl fs upload lakefs://catalogs/main/_lakefs_tables/animals.yaml -s ./animals.yaml && \ lakectl commit lakefs://catalogs/main -m "added table"

```yaml name: animals type: hive

data location root in lakeFS

path: tables/animals

partitions order

partition_columns: ['type', 'weight'] schema: type: struct # all the columns spec fields: - name: type type: string nullable: true metadata: comment: axolotl, cat, dog, fish etc - name: weight type: integer nullable: false metadata: {} - name: name type: string nullable: false metadata: {} ```

Write some table data

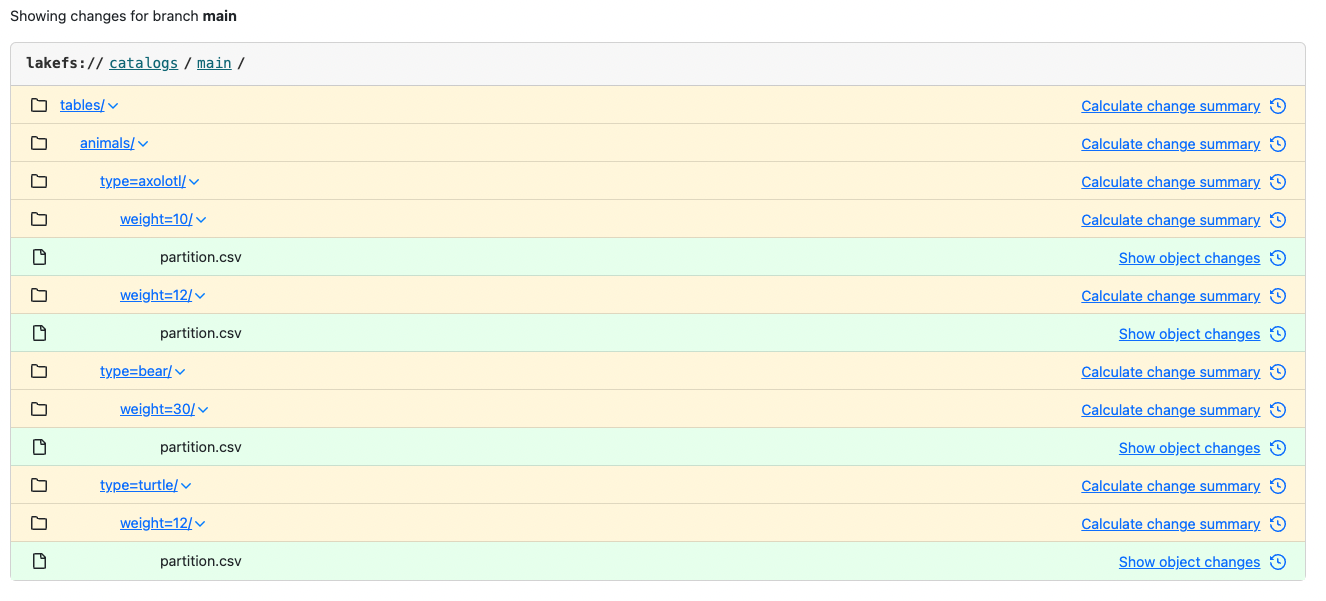

Insert data into the table path, using your preferred method (e.g. Spark), and commit upon completion. This example uses CSV files, and the files added to lakeFS should look like this:

The exporter script

Upload the following script to your main branch under scripts/animals_exporter.lua (or a path of your choice).

Note

For code references check symlink_exporter and glue_exporter docs.

lua local aws = require("aws") local symlink_exporter = require("lakefs/catalogexport/symlink_exporter") local glue_exporter = require("lakefs/catalogexport/glue_exporter") -- settings local access_key = args.aws.aws_access_key_id local secret_key = args.aws.aws_secret_access_key local region = args.aws.aws_region local table_path = args.table_source -- table descriptor local db = args.catalog.db_name -- glue db local table_input = args.catalog.table_input -- table input (AWS input spec) for Glue -- export symlinks local s3 = aws.s3_client(access_key, secret_key, region) local result = symlink_exporter.export_s3(s3, table_path, action, {debug=true}) -- register glue table local glue = aws.glue_client(access_key, secret_key, region) local res = glue_exporter.export_glue(glue, db, table_path, table_input, action, {debug=true})

Configure Action Hooks

Hooks serve as the mechanism that triggers the execution of the exporter. For more detailed information on how to configure exporter hooks, you can refer to Running an Exporter.

Info

The args.catalog.table_input argument in the Lua script is assumed to be passed from the action arguments, that way the same script can be reused for different tables.

heck the example to construct the table input in the lua code.

Hook CSV Glue TableHook Parquet Glue TableMultiple Hooks / Inline script

Upload to _lakefs_actions/animals_glue.yaml:

yaml name: Glue Exporter on: post-commit: branches: ["main"] hooks: - id: animals_table_glue_exporter type: lua properties: script_path: "scripts/animals_exporter.lua" args: aws: aws_access_key_id: "<AWS_ACCESS_KEY_ID>" aws_secret_access_key: "<AWS_SECRET_ACCESS_KEY>" aws_region: "<AWS_REGION>" table_source: '_lakefs_tables/animals.yaml' catalog: db_name: "my-glue-db" table_input: StorageDescriptor: InputFormat: "org.apache.hadoop.hive.ql.io.SymlinkTextInputFormat" OutputFormat: "org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat" SerdeInfo: SerializationLibrary: "org.apache.hadoop.hive.serde2.OpenCSVSerde" Parameters: separatorChar: "," Parameters: classification: "csv" "skip.header.line.count": "1"

When working with Parquet files, upload the following to _lakefs_actions/animals_glue.yaml:

yaml name: Glue Exporter on: post-commit: branches: ["main"] hooks: - id: animals_table_glue_exporter type: lua properties: script_path: "scripts/animals_exporter.lua" args: aws: aws_access_key_id: "<AWS_ACCESS_KEY_ID>" aws_secret_access_key: "<AWS_SECRET_ACCESS_KEY>" aws_region: "<AWS_REGION>" table_source: '_lakefs_tables/animals.yaml' catalog: db_name: "my-glue-db" table_input: StorageDescriptor: InputFormat: "org.apache.hadoop.hive.ql.io.SymlinkTextInputFormat" OutputFormat: "org.apache.hadoop.hive.ql.io.IgnoreKeyTextOutputFormat" SerdeInfo: SerializationLibrary: "org.apache.hadoop.hive.ql.io.parquet.serde.ParquetHiveSerDe" Parameters: classification: "parquet" EXTERNAL: "TRUE" "parquet.compression": "SNAPPY"

The following example demonstrates how to separate the symlink and glue exporter into building blocks running in separate hooks. It also shows how to run the lua script inline instead of a file, depending on user preference.

yaml name: Animal Table Exporter on: post-commit: branches: ["main"] hooks: - id: symlink_exporter type: lua properties: args: aws: aws_access_key_id: "<AWS_ACCESS_KEY_ID>" aws_secret_access_key: "<AWS_SECRET_ACCESS_KEY>" aws_region: "<AWS_REGION>" table_source: '_lakefs_tables/animals.yaml' script: | local exporter = require("lakefs/catalogexport/symlink_exporter") local aws = require("aws") local table_path = args.table_source local s3 = aws.s3_client(args.aws.aws_access_key_id, args.aws.aws_secret_access_key, args.aws.aws_region) exporter.export_s3(s3, table_path, action, {debug=true}) - id: glue_exporter type: lua properties: args: aws: aws_access_key_id: "<AWS_ACCESS_KEY_ID>" aws_secret_access_key: "<AWS_SECRET_ACCESS_KEY>" aws_region: "<AWS_REGION>" table_source: '_lakefs_tables/animals.yaml' catalog: db_name: "my-glue-db" table_input: # add glue table input here script: | local aws = require("aws") local exporter = require("lakefs/catalogexport/glue_exporter") local glue = aws.glue_client(args.aws.aws_access_key_id, args.aws.aws_secret_access_key, args.aws.aws_region) exporter.export_glue(glue, args.catalog.db_name, args.table_source, args.catalog.table_input, action, {debug=true})

Adding the script and the action files to the repository and commit it. This is a post-commit action, meaning it will be executed after the commit operation has taken place.

bash lakectl fs upload lakefs://catalogs/main/scripts/animals_exporter.lua -s ./animals_exporter.lua lakectl fs upload lakefs://catalogs/main/_lakefs_actions/animals_glue.yaml -s ./animals_glue.yaml lakectl commit lakefs://catalogs/main -m "trigger first export hook"

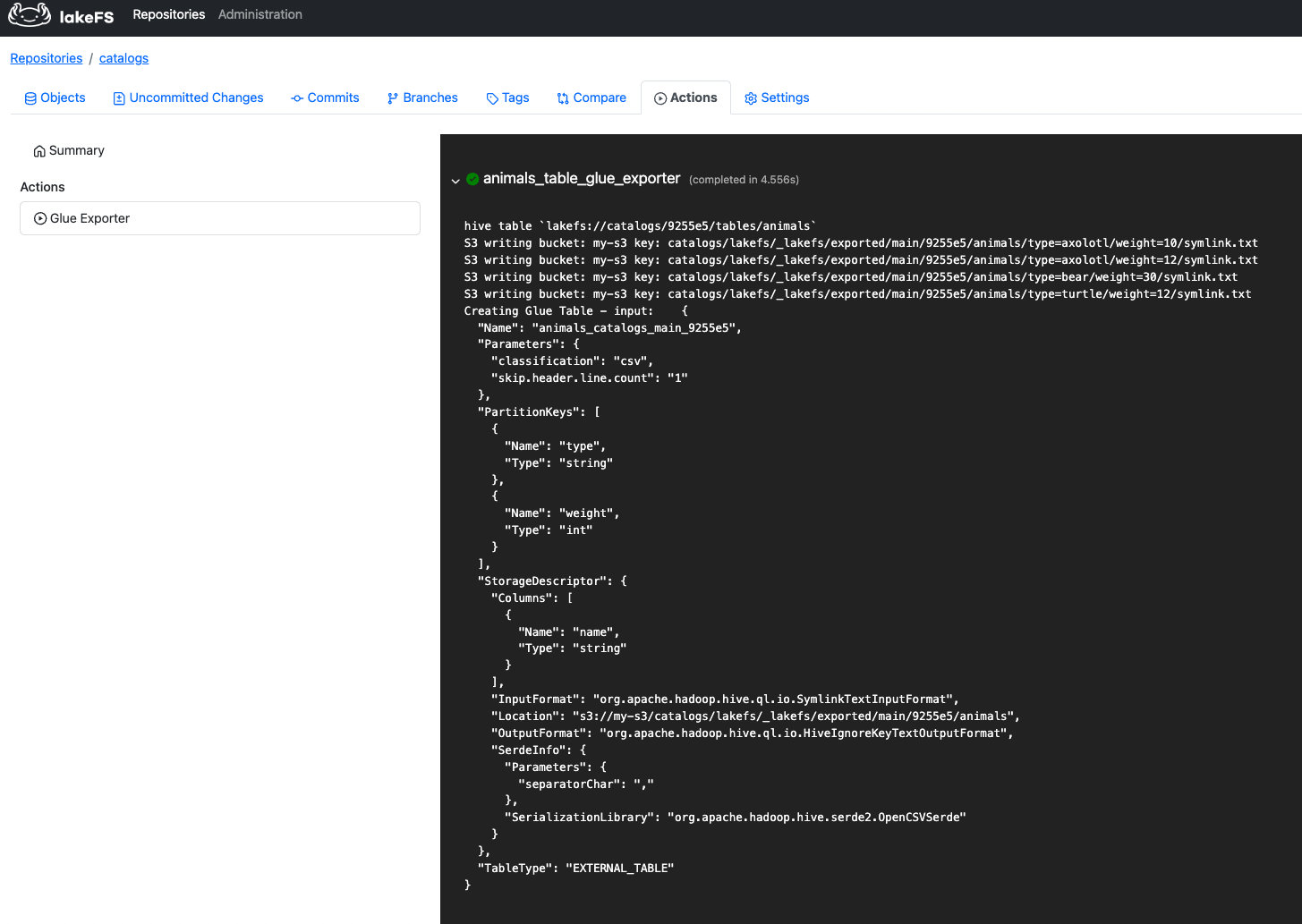

Once the action has completed its execution, you can review the results in the action logs.

Use Athena

We can use the exported Glue table with any tool that supports Glue Catalog (or Hive compatible) such as Athena, Trino, Spark and others. To use Athena we can simply run MSCK REPAIR TABLE and then query the tables.

In Athena, make sure that the correct database (my-glue-db in the example above) is configured, then run:

sql MSCK REPAIR TABLE `animals_catalogs_main_9255e5`; -- load partitions for the first time SELECT * FROM `animals_catalogs_main_9255e5` limit 50;

Cleanup

Users can use additional hooks / actions to implement a custom cleanup logic to delete the symlink in S3 and Glue Tables.

lua glue.delete_table(db, '<glue table name>') s3.delete_recursive('bucket', 'path/to/symlinks/of/a/commit/')
